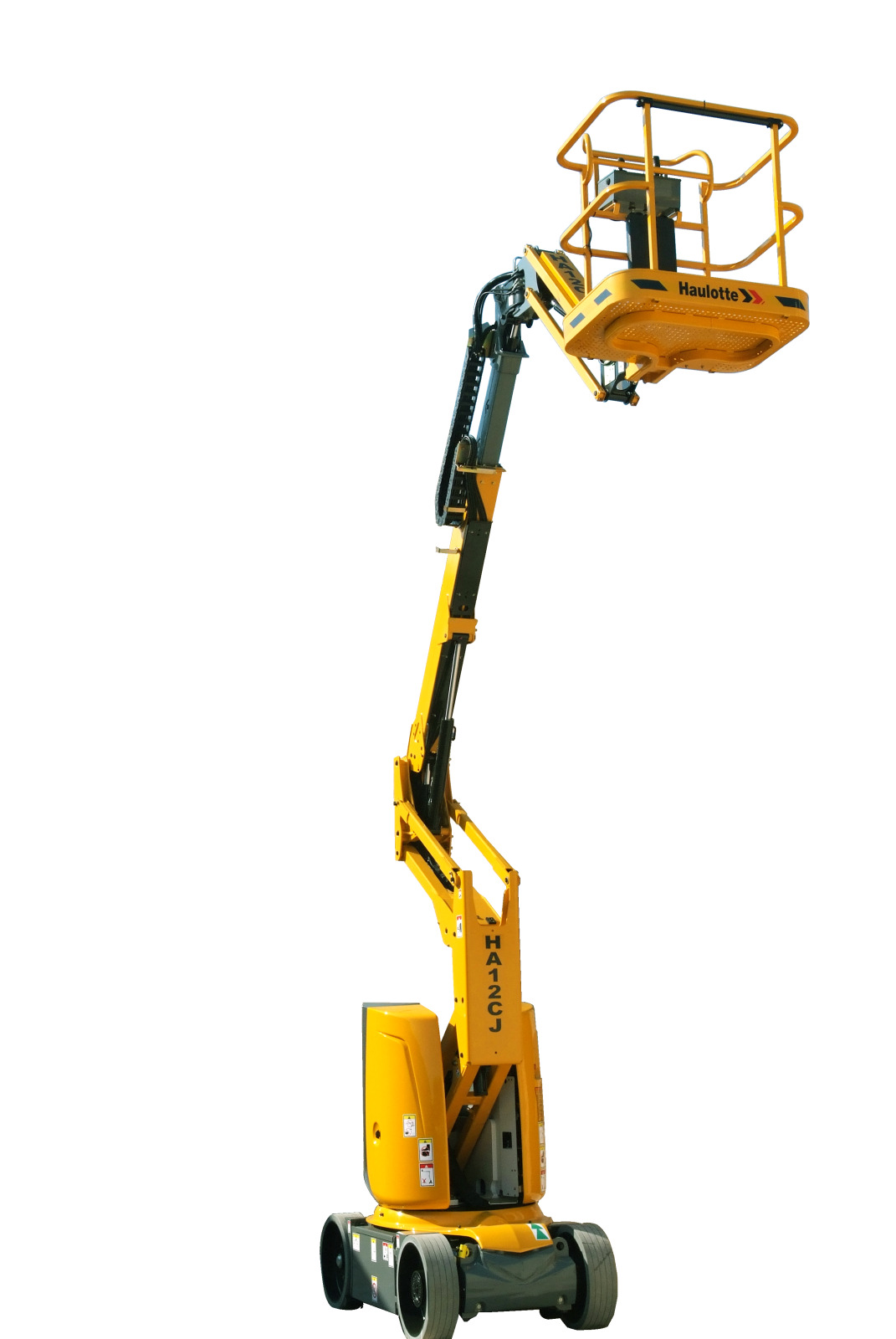

Electric Articulating Booms HA12 CJ

Platform height 9.68 m
Working height 11.68 m
Own weight 7.065 kg
Battery 48 V - 320 Ah (C5)
Lift capacity 250 kg
Length 5.36 m
Width 1.2 m
Height - stowed 1.99 m

  • Excellent manoeuvrability in the tightest spaces
  • Drive and turntable rotation
  • Tight turning radius
  • Zero tailswing
  • Compact stowed height passes through standard doorways
  • 1.20m width
  • Optimized productivity
  • Proportional and simultaneous movements
  • Suitable for inside and outside use
  • Long working cycles
